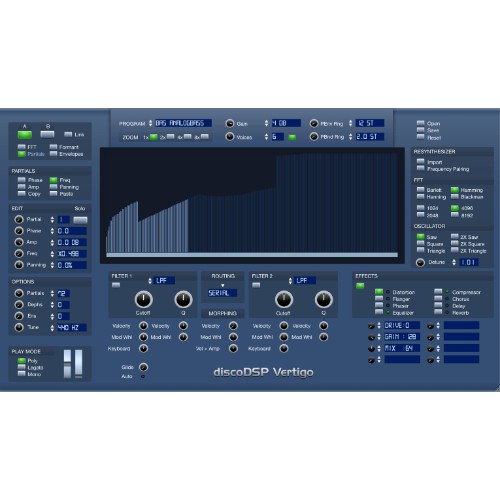

Vertigo Additive Synthesizer

Vertigo - Additive Synthesis

Overview

• 64-bit Audio Units and VST / VST3 support

• 32-bit Audio Units, VST / VST3 support

• Up to 16 voices polyphony

• WAV PCM analysis and bitmap import

• 1024, 2048, 4096, 8192 FFT frame sizes

• 4 Windows: Bartlett, Hamming, Hanning and Blackman

• Multi-threaded GUI rendering

• Pre-rendered GUI graphics for faster response

Envelope

• 256 breakpoints parabolic envelopes with stage slope control

Oscillators

• Euler generated (Max: -120dB s/noise ratio) (no wavetables used)

• Up to 256 per voice

• 2 Modulation sources with morphing.

• Phase

• Amplitude

• Note pitch shift amount

• Frequency ratio

• Freq./amp envelope

Synthesis Options

• Harmonize (Harmonic/Odd Harmonic vocoder)

• Phase smearing

• Frequency smearing (ensemble)

• Classic waveform generator assistant (Saw/Square/Triangle/2X Saw/Square/Triangle)

Filter

• Low Pass/High Pass/Band Pass 12/Band Pass 24/Notch/Peak

• Cutoff envelope

• Wheel/Key/Velocity modulation amounts for cutoff

• Wheel/Velocity modulation amounts for resonance

Voices

• Two resonant filters (serial/parallel mode)

• Pitch envelope

• Amplitude envelope

• Pitch Bend control

Effects

• Distortion (8x oversampled overdrive with soft clip)

• Phaser (up to 128 taps)

• Flanger

• Compressor

• Equalizer (8 bands)

• Chorus

• Delay

• Reverb

Mac:

• macOS 10.13 or higher
• RAM: 4GB
• Native Apple Silicon support

Windows:

• Windows 8 or higher
• RAM: 4GB
